Foundation design in Santa Ana must address the variable alluvial and older marine terrace deposits typical of the Los Angeles Basin. Local conditions often include undocumented fill, liquefiable sands, and highly expansive or compressible silts and clays, demanding thorough subsurface investigation. Projects routinely require settlement analysis to estimate both immediate and consolidation-induced deformations, while sites with fill or collapsible materials benefit from a collapsible soil evaluation to quantify hydrocompaction risk under the International Building Code and local CBC amendments.

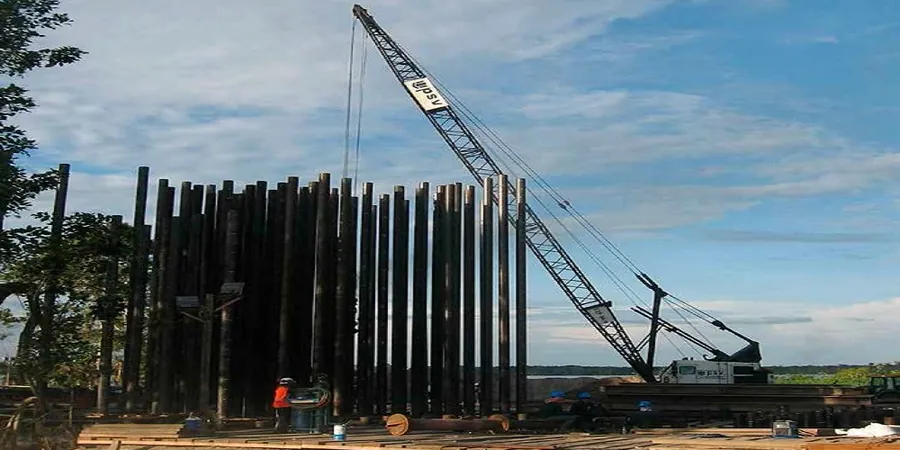

These evaluations directly support shallow and deep foundation selection for commercial, industrial, and hillside residential developments. Where near-surface soils are inadequate, pile foundation design is specified to transfer loads to competent bearing strata, bypassing problematic upper layers. For heavily loaded structures on soft ground, raft/mat foundation design reduces differential movement and eliminates individual footings. Each recommendation is calibrated to the site stratigraphy to deliver a foundation system that meets long-term serviceability criteria.
Active anchors generate their own load, passive anchors resist it; knowing which one fits Santa Ana’s deposits is the difference between a secure wall and a progressive failure.
Scope of work in Santa Ana
Risks and considerations in Santa Ana
The greatest risk for anchor systems in Santa Ana is the presence of undocumented fill and loose granular deposits from historical agricultural land use. When a drill rig encounters a buried layer of uncompacted sand or old organic debris, the grout takes an unpredictable path, reducing bond capacity. For active anchors, the lock-off load can induce excessive creep if the bonded zone sits in a creeping soil. For passive anchors, the lack of initial tension means the system only activates after movement begins, which can be problematic in seismic events where displacements are rapid. We always verify the soil profile with a test anchor loaded to 1.5 times the design load, and we require proof testing for every production anchor in Santa Ana.
This service complements our laboratory testing work for a complete project analysis.
Our services
We offer two specialized anchor design services tailored to Santa Ana’s subsurface conditions.

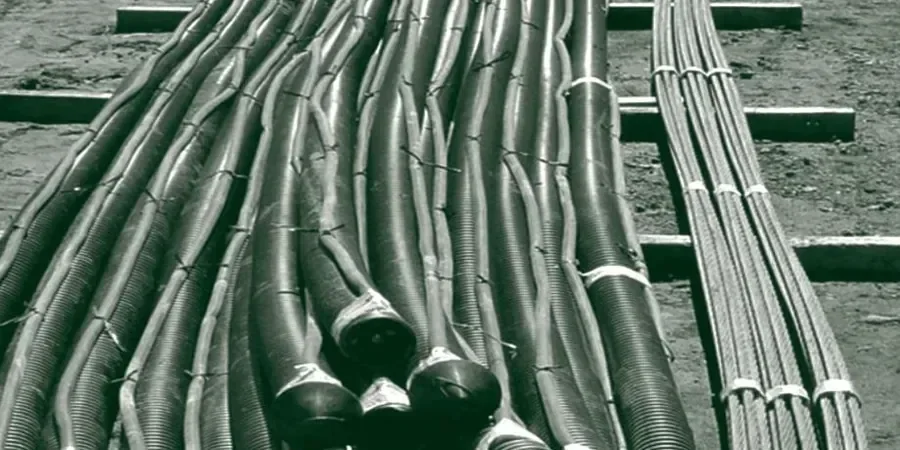

Active Anchor Design
Permanent and temporary post-tensioned anchors for retaining walls, tieback walls, and slope stabilization. Includes lock-off load verification, corrosion protection design, and proof testing in accordance with PTI DC35.1.
Passive Anchor Design
Grouted anchors for foundation uplift resistance, MSE wall facing connections, and temporary excavation support. Designed with conservative bond lengths and verified through pullout tests to confirm capacity.
