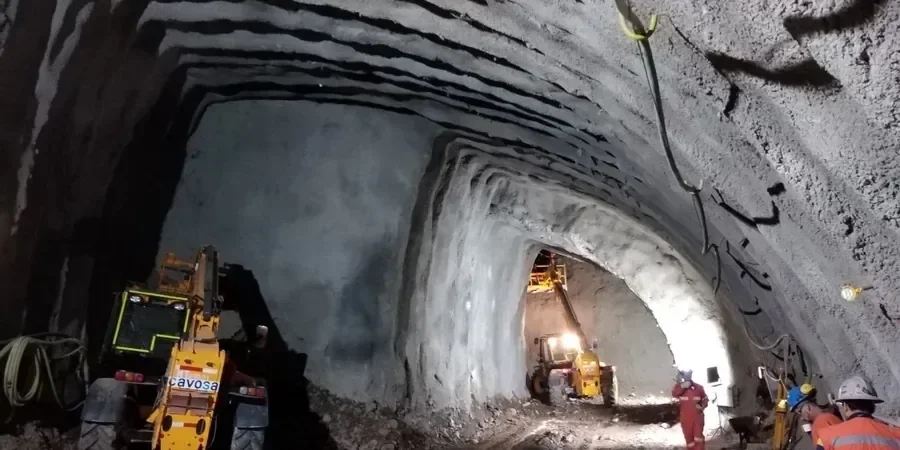

Geotechnical Analysis for Soft Soil Tunnels in Santa Ana

The alluvium beneath southwestern Santa Ana behaves nothing like the older terrace deposits near the Civic Center. We know this firsthand from dozens of boreholes across the city. For tunnel alignment along the Santa Ana River corridor, the soft silty clays and loose sands demand a dedicated geotechnical analysis for soft soil tunnels that accounts for low shear strength and high compressibility. In contrast, the firmer ground near the 55 freeway allows simpler excavation methods. Getting this distinction wrong leads to face instability or excessive surface settlements.

In soft silty clays along the Santa Ana River, SPT N-values between 2 and 8 are common; CPT tip resistance often falls below 1 MPa.

Scope of work in Santa Ana

A common mistake we see: local contractors run only standard penetration tests and assume they are done. For soft ground tunneling, SPT alone misses the strain-dependent stiffness of these soils. Our approach couples SPT with cone penetration testing (CPT) to obtain continuous profiles of tip resistance and sleeve friction. This allows us to identify thin clay lenses that could act as sliding planes. The key parameters we evaluate include undrained shear strength (Su), coefficient of consolidation (cv), and lateral earth pressure coefficient (K0). We then run triaxial CU tests per ASTM D4767 to model the stress path during excavation. Before any tunnel design begins, we recommend a CPT-based soil behavior type classification to map stratigraphic changes.

Geotechnical Analysis for Soft Soil Tunnels in Santa Ana

Parameter	Typical value
Undrained shear strength (Su)	10–40 kPa
Coefficient of consolidation (cv)	0.5–5 m²/yr
SPT N-value (soft layers)	2–8 blows/ft
CPT tip resistance (qc)	0.5–2.0 MPa
Lateral earth pressure (K0)	0.5–0.8
Fines content (<#200 sieve)	60–90%

Risks and considerations in Santa Ana

We deploy a 20-tonne CPT truck with a 30-tonne reaction frame for Santa Ana projects. The cone pushes at 20 mm/s through the soft alluvium. A piezocone measures pore pressure dissipation every 1.5 m to estimate hydraulic conductivity. The risk of liquefaction in loose sands below the water table is real — we apply the Youd-Idriss 2001 method to compute factor of safety. Without this data, a tunnel face collapse could propagate to the surface within minutes, especially near existing utilities along 1st Street.

This service complements our laboratory testing work for a complete project analysis.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.com

Applicable standards: ASCE 7-22 (seismic site classification), ASTM D5778-20 (CPT procedure), ASTM D4767-11 (triaxial CU test), Youd-Idriss 2001 (liquefaction evaluation criteria)

Our services

We provide two complementary service lines to support tunnel design in Santa Ana's soft soils:

In-Situ Package (CPT & SPT)

Continuous CPT soundings with pore pressure dissipation tests, plus SPT at 1.5 m intervals in boreholes. Includes seismic cone (SCPTU) for shear wave velocity profiles.

Advanced Laboratory Program

Triaxial CU and UU tests, consolidation (oedometer) tests, and index properties (Atterberg limits, grain size). All tests follow ASTM standards with NATA-accredited procedures.

Q&A

What is the typical cost range for a geotechnical analysis for soft soil tunnels in Santa Ana?

For a medium-diameter tunnel (3–5 m) in Santa Ana, the geotechnical investigation typically ranges from US$3.940 to US$15.850 depending on borehole depth, number of CPT soundings, and lab test scope. A basic scope covering four boreholes to 20 m and eight CPTs falls at the lower end; deeper alignments or 3D stratigraphic models push costs upward.

How deep should boreholes be for a soft ground tunnel in Santa Ana?

Boreholes should extend at least 1.5 tunnel diameters below the invert elevation. For a 4 m diameter tunnel at 10 m depth, we drill to 16 m minimum. In Santa Ana's alluvium, we often go to 20–25 m to characterize the full compressible layer and identify the underlying Pleistocene gravels.

What is the difference between CPT and SPT for soft ground tunnel design?

CPT provides continuous profiles of tip resistance and sleeve friction, ideal for identifying thin weak layers and assessing stratigraphy in soft soils. SPT gives disturbed samples for index tests and N-values for empirical correlations. For tunnels in Santa Ana, we use both: CPT for detailed profile and SPT for sample recovery and liquefaction triggering analysis.
